A-SUNGThe eco-friendly advanced agricultulre's leading company
csp-500
csp-500h

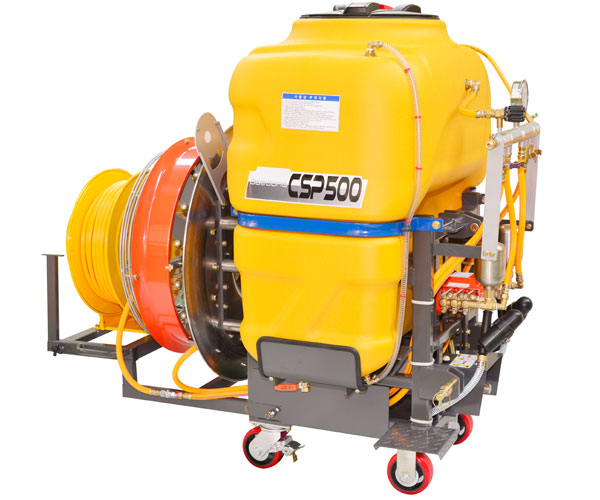

Sprayer for tractor attachment CSP 500 / CSP 500H
| Model | Size(mm)=L¡¿W¡¿H | Weight | Tank capacity | Maximum discharge of air | Caliber of fan discharge port |
Hose reel type | Hose length | Horse power |
|---|---|---|---|---|---|---|---|---|
| CSP-500 | 1,790¡¿1,110¡¿1,570 | 310kg | 500§¤ | 24,000§©/h | ¨ª730 | Spring rewind type | ¨ª10¡¿50M | Over 30hp |
| CSP-500H | 1,490¡¿1,110¡¿1,570 | 280kg | 500§¤ | – | – | Spring rewind type | ¨ª10¡¿50M | Over 30hp |
| Pump Spec. | Pump output | Pressure | Horse power | Rotations | Weight | Inlet | Discharge port |
|---|---|---|---|---|---|---|---|
| Horizontal hexa piston pump | 45§¤/min | 50bar | 6HP | 2,160rpm | 7Kg | ¨ª3/4¡¿2 | ¨ª1/2¡¿2 |
¡Ø To improve quality and performance, above mentioned specification coule be changed without any notice.

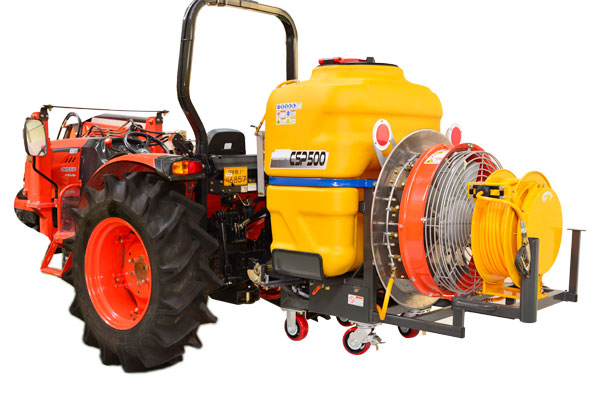

Tractor attachment
Horizontal hexa piston type

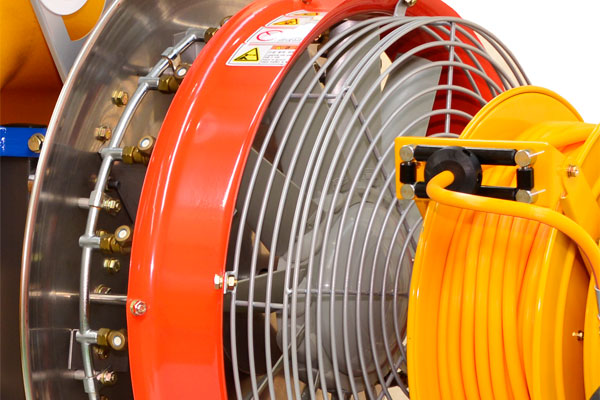

Blast fan, Hose reel

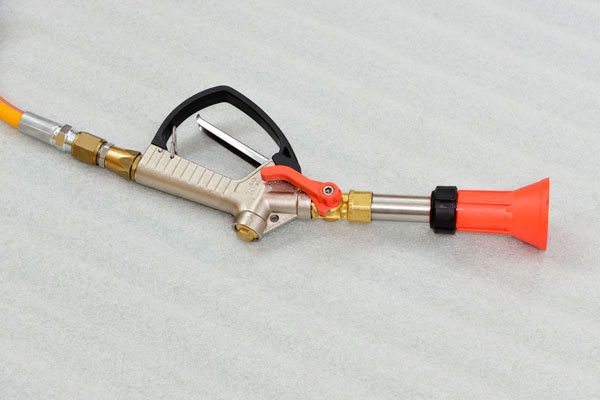

Spray gun for hose reel

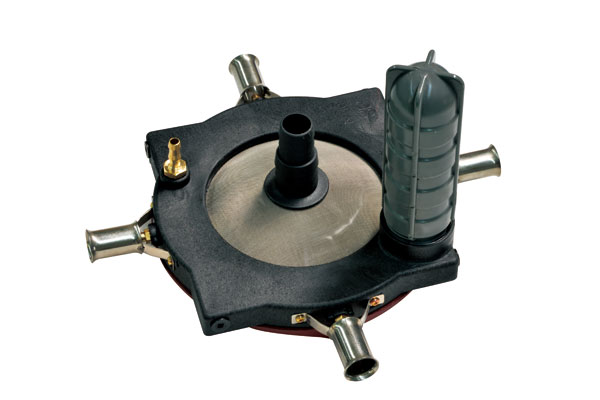

Agitator

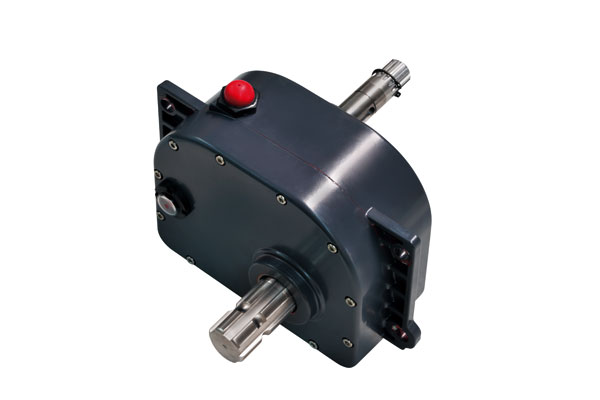

Speed-increasing gearbox
